The operation of an LCD screen monitor relies on precise control of liquid crystal molecules to modulate light passing through the display. Unlike emissive display technologies such as OLED, LCDs function as light modulators, requiring a separate backlight source to produce visible images. The driving system of an LCD screen monitor is responsible for controlling each pixel's transparency, which directly affects the displayed image's quality, accuracy, and responsiveness.
Basic Operating Principles
At the core of every LCD screen monitor lies the liquid crystal layer, sandwiched between two polarizing filters oriented perpendicular to each other. Without any applied voltage, liquid crystal molecules align to twist the polarization of light by 90 degrees, allowing it to pass through both filters. When an electric field is applied via the pixel electrodes, the liquid crystal molecules reorient, reducing or eliminating this twisting effect and controlling the amount of light that passes through.
The driving circuit precisely regulates the voltage applied to each pixel, determining its transparency. In color displays, each pixel consists of three subpixels (red, green, and blue) that can be controlled independently, enabling the reproduction of millions of colors through additive color mixing.
Driving Methods
Two primary driving methods are employed in modern LCD screen monitor technology:
1. Passive Matrix (PMLCD)
In passive matrix displays, pixels are addressed using a grid of row and column electrodes. Voltage is applied to specific row and column intersections to activate individual pixels. This method is simpler and less expensive but suffers from slower response times and lower contrast ratios, making it suitable only for basic applications.
2. Active Matrix (AMLCD)
Active matrix displays incorporate a thin-film transistor (TFT) for each subpixel, allowing for individual control and maintaining the pixel's state between refreshes. This technology enables faster response times, higher contrast ratios, and superior image quality, making it the standard for modern LCD screen monitor applications, including computer monitors, televisions, and mobile devices.
Key Components of the Driving System
A sophisticated LCD screen monitor driving system comprises several critical components working in harmony:
- Timing Controller (TCON): Synchronizes all display operations, converting input signals into appropriate formats for the row and column drivers.
- Gate Drivers (Row Drivers): Control the selection of rows in the display matrix, activating the TFTs in the selected row.
- Source Drivers (Column Drivers): Apply the appropriate voltage to each column, determining the brightness of activated pixels.
- Backlight Unit: Provides uniform illumination across the display, with brightness control mechanisms for power efficiency and user comfort.
- Power Management ICs: Regulate and distribute power to various components, ensuring stable operation and energy efficiency.
The evolution of LCD screen monitor technology has led to significant advancements in driving systems, including higher resolution support, faster refresh rates, and improved power efficiency. Modern driving systems incorporate advanced features such as local dimming, adaptive refresh rates, and high dynamic range (HDR) processing to deliver superior visual experiences.
Understanding the fundamentals of LCD panel driving is essential for diagnosing and addressing common display issues, as many visual anomalies can be traced to specific components or processes within the driving system. As we explore specific defects in subsequent sections, we'll reference these fundamental principles to explain their root causes and potential solutions.

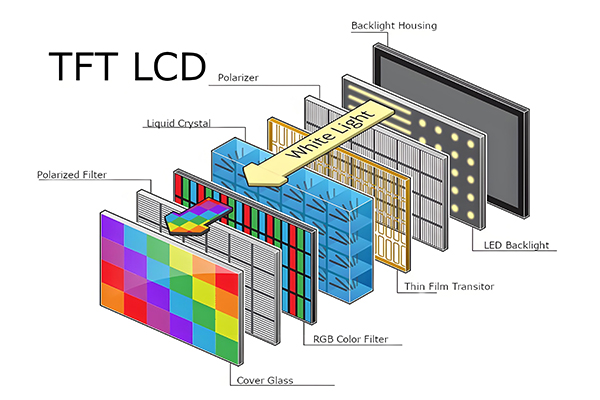

LCD Panel Layer Structure
Cross-sectional view showing the layered construction of an LCD panel, including backlight, polarizers, and liquid crystal layer.
LCD Driving System Efficiency
Key Insight
The driving system efficiency directly impacts an LCD screen monitor's power consumption and heat generation. Advanced driving techniques can reduce energy usage by up to 30% while maintaining image quality.
Crosstalk represents one of the most challenging image artifacts in modern LCD screen monitor technology, characterized by unwanted signal interference between adjacent pixels or lines. This interference manifests as blurred edges, color bleeding, or reduced contrast, particularly in areas with sharp transitions between light and dark regions. Understanding the complex causes of crosstalk is essential for developing effective mitigation strategies in LCD screen monitor design and manufacturing.
Causes and Mechanisms
Crosstalk in an LCD screen monitor can originate from multiple sources, each contributing differently to the observed artifacts:
Electrical Crosstalk
Occurs when electrical signals from adjacent wires or components interfere with each other through capacitive or inductive coupling. This is particularly problematic in high-resolution displays with densely packed circuits where conductor spacing is minimal.
Optical Crosstalk
Arises from light leakage between adjacent subpixels or pixels, often due to imperfect alignment of color filters, insufficient isolation structures, or light scattering within the liquid crystal layer.
Timing-Related Crosstalk
Results from imperfect synchronization between row and column drivers, causing charge from one pixel to affect neighboring pixels during refresh cycles, especially at high refresh rates.
Environmental Factors
Temperature variations can induce crosstalk by altering the electrical properties of the liquid crystal material and the conductivity of the thin-film transistors in an LCD screen monitor.
Characteristics and Visual Manifestations
Crosstalk manifests differently depending on its root cause and the LCD screen monitor's design. Common visual indicators include:
- Color bleeding at the edges of high-contrast objects, particularly noticeable in text and graphics
- Ghosting or double images in fast-moving content, such as video or gaming
- Reduced contrast ratio in areas with alternating light and dark patterns
- Vertical or horizontal lines visible between adjacent pixels or pixel groups
- Uneven brightness distribution in uniform color fields, especially in large-area displays
These artifacts are often more pronounced in specific usage scenarios, such as when displaying fine text, high-contrast images, or rapidly changing content. In professional applications like graphic design or video editing, even subtle crosstalk can significantly impact workflow accuracy and user satisfaction with an LCD screen monitor.
Measurement and Quantification
Accurate measurement of crosstalk is essential for quality control and improvement in LCD screen monitor production. Standardized test patterns and measurement methodologies include:
Line Pair Patterns: Alternating black and white lines of varying widths help identify horizontal and vertical crosstalk. The modulation depth (contrast) between lines is measured, with reduced modulation indicating higher crosstalk levels.
Checkerboard Patterns: These patterns reveal 2D crosstalk effects, with measurements taken of the brightness deviation in adjacent squares. Advanced measurement systems can quantify crosstalk levels down to 0.1% in high-performance displays.
Time-Domain Analysis: For motion-related crosstalk, high-speed photometry captures brightness variations during pixel transitions, revealing timing-related interference between consecutive frames.
Mitigation Strategies and Solutions
Addressing crosstalk requires a multi-faceted approach involving materials science, circuit design, and signal processing in LCD screen monitor development:
Design and Manufacturing Solutions
- Advanced pixel isolation structures, including improved black matrix designs and subpixel partitioning
- Optimized circuit layouts with reduced conductor spacing variations and improved shielding between signal lines
- High-performance liquid crystal materials with reduced optical crosstalk and improved response characteristics
- Enhanced color filter alignment and precision patterning techniques to minimize light leakage
Electronic and Signal Processing Solutions
- Advanced driving algorithms with crosstalk compensation, including pre-emphasis and post-processing techniques
- Adaptive pixel charging strategies that adjust voltage levels based on neighboring pixel states
- Improved timing controller (TCON) designs with precise synchronization and reduced signal propagation delays
- Local dimming technologies in backlit LCD screen monitor models to reduce contrast-related crosstalk
The ongoing pursuit of higher resolution, faster refresh rates, and improved image quality in LCD screen monitor technology continues to drive innovations in crosstalk reduction. Advanced simulation tools now allow engineers to predict and mitigate potential crosstalk issues during the design phase, significantly improving manufacturing yields and final product quality. For end-users, understanding crosstalk characteristics can aid in selecting the appropriate display for specific applications and optimizing LCD screen monitor settings for the best possible visual performance.
Crosstalk Visualization
Demonstration of color bleeding and edge blurring caused by crosstalk in an LCD display.
Crosstalk Measurement Results
Industry Standard
For professional-grade LCD screen monitor applications, crosstalk levels below 2% are generally considered acceptable, with high-end displays achieving measurements below 0.5% in optimal conditions.
Crosstalk Reduction Techniques
Flicker
Flicker in an LCD screen monitor refers to the periodic or random variation in brightness that can cause visual discomfort, eye strain, and in severe cases, headaches or fatigue. Unlike CRT displays, which inherently flickered due to their scanning mechanism, LCD flicker arises from different mechanisms related to backlight control and pixel refreshing. Understanding the complex nature of flicker in modern LCD screen monitor technology is crucial for both manufacturers striving to improve user experience and users seeking to optimize their display settings.
Types and Mechanisms of Flicker
Flicker in an LCD screen monitor can manifest through several distinct mechanisms, each with unique characteristics:
1. Backlight Flicker
This is the most common type of flicker in modern LCD screen monitor models, resulting from the modulation of the backlight source. Two primary backlight technologies exhibit different flicker characteristics:
CCFL Backlights: Cold Cathode Fluorescent Lamp backlights use AC power, which inherently flickers at twice the line frequency (100Hz or 120Hz). While generally imperceptible to most viewers, some sensitive individuals can detect this flicker, particularly in dimly lit environments.
LED Backlights: Light Emitting Diode backlights can exhibit flicker when using Pulse Width Modulation (PWM) for brightness control. Instead of dimming the LEDs by reducing current (which can affect color temperature), PWM rapidly turns the LEDs on and off, with the duty cycle determining perceived brightness. Flicker becomes noticeable when the PWM frequency is too low, typically below 200Hz.
2. Frame Rate Flicker
This type of flicker occurs when the LCD screen monitor's refresh rate is mismatched with the input signal or when frame interpolation techniques create visible artifacts. It is particularly noticeable during fast-moving content, where the brain perceives the discrete frame updates as a flickering motion.
Refresh rates below 60Hz are increasingly recognized as problematic for extended viewing sessions, with modern displays often offering 75Hz, 120Hz, or higher refresh rates to minimize this effect.
3. Pixel Response Flicker
Arising from the liquid crystal molecules' imperfect response to voltage changes, this flicker appears as brightness variations during pixel transitions. It is particularly evident in low-gray-level transitions, where the liquid crystals struggle to maintain stable intermediate states. Advanced driving algorithms and improved liquid crystal materials have significantly reduced this type of flicker in modern LCD screen monitor technology.
Human Perception and Health Impacts
The human visual system's sensitivity to flicker varies significantly between individuals and depends on several factors, including flicker frequency, amplitude, ambient lighting, and viewing distance. While most people cannot perceive flicker above approximately 50-60Hz under normal conditions, some individuals demonstrate sensitivity to higher frequencies, especially when viewing an LCD screen monitor for extended periods.
Research has linked exposure to visible flicker in display devices to various visual and physiological effects:
- Eye strain, characterized by dryness, redness, and fatigue
- Headaches and migraines, particularly in susceptible individuals
- Reduced visual performance, including decreased reading speed and accuracy
- Increased mental fatigue during prolonged viewing sessions
- Potential triggering of photosensitive epileptic seizures in rare cases
These effects have led to the development of international standards and recommendations regarding acceptable flicker levels in display devices, including specific guidelines for LCD screen monitor products used in professional and consumer environments.
Measurement and Quantification
Accurate measurement of flicker is essential for quality control in LCD screen monitor production and for comparing different display technologies. Specialized equipment and methodologies are employed to characterize flicker:
Key Flicker Metrics
Flicker Frequency
Measured in Hertz (Hz), representing the number of brightness cycles per second. Modern measurement systems can detect frequencies up to several kilohertz.
Flicker Percentage (Modulation Depth)
Calculated as ((Lmax - Lmin) / (Lmax + Lmin)) × 100%, representing the relative brightness variation. Lower percentages indicate less perceptible flicker.
Flicker Index
A weighted measurement that accounts for the human visual system's greater sensitivity to certain flicker frequencies and amplitudes.
Measurement procedures typically involve capturing brightness variations over time using high-speed photometers or spectrometers, then analyzing the collected data to determine the key flicker metrics. Standardized test patterns and conditions ensure consistent results across different LCD screen monitor models and manufacturers.
Mitigation Strategies and Solutions
Reducing flicker in LCD screen monitor technology has been a major focus of display manufacturers, resulting in several effective strategies:
Hardware Solutions
- High-frequency PWM (1000Hz+) in LED backlights, making flicker imperceptible
- DC dimming techniques that adjust current rather than using PWM
- Higher refresh rates (120Hz and above) to reduce frame transition flicker
- Improved liquid crystal materials with faster, more stable response characteristics
Software and Firmware Solutions
- Adaptive backlight control algorithms that adjust PWM frequency with brightness level
- Advanced pixel driving techniques to ensure stable gray levels
- Frame interpolation technologies to smooth motion transitions
- User-controllable flicker reduction modes in LCD screen monitor settings
For end-users experiencing flicker issues with their LCD screen monitor, several practical steps can help mitigate the problem. These include adjusting the display's brightness to avoid PWM dimming ranges, enabling any available flicker reduction features, ensuring proper refresh rate settings, and maintaining appropriate ambient lighting conditions. In professional environments, selecting displays specifically marketed as "flicker-free" can significantly improve comfort during extended work sessions. As display technology continues to evolve, flicker reduction remains a key area of innovation, with new approaches constantly emerging to enhance the LCD screen monitor user experience.
Flicker Visualization
Illustration of brightness fluctuations causing visible flicker in an LCD display, particularly noticeable in dim conditions.
Flicker Perception Thresholds
Health Guidelines
Health organizations recommend LCD screen monitor flicker frequencies above 300Hz for comfortable extended viewing. Flicker modulation depths should remain below 10% to minimize eye strain and fatigue.
Flicker Comparison by Technology
Image retention, often colloquially referred to as "burn-in," is a persistent display artifact where a faint ghost image remains visible even after the original image has changed. While more commonly associated with plasma and OLED displays, this phenomenon can also occur in LCD screen monitor technology under specific conditions. Understanding the mechanisms behind image retention in an LCD screen monitor is essential for prevention, mitigation, and developing effective recovery strategies.
Causes and Mechanisms in LCD Technology
Unlike emissive display technologies where burn-in results from uneven pixel degradation, image retention in an LCD screen monitor arises from different physical processes related to the liquid crystal material and backlight system:
1. Liquid Crystal Degradation
Liquid crystal molecules can experience fatigue when held in a fixed orientation for extended periods. This molecular fatigue causes the crystals to respond less effectively to voltage changes, resulting in a persistent pattern that matches the static image. The effect is more pronounced in LCD screen monitor models using older liquid crystal formulations with lower stability.
This type of retention is often temporary but can become semi-permanent in severe cases, particularly when displays are operated at high temperatures or with extreme voltage levels applied to the liquid crystal layer.
2. Polarizer and Filter Aging
The polarizing filters and color filters in an LCD screen monitor can undergo uneven aging when exposed to constant backlight intensity over time. Areas displaying static bright elements experience greater light exposure, causing subtle changes in the filter materials that manifest as visible ghost images. This effect is most noticeable in displays with high-brightness settings and long static image durations.
3. Backlight Unevenness
In LCD screen monitor models with LED backlighting, particularly those without local dimming, areas of the backlight can experience slight degradation from prolonged operation at specific brightness levels. This creates subtle brightness variations that match static image patterns, even after the image content changes.
4. Contamination Effects
In rare cases, image retention can result from contamination or imperfections in the liquid crystal layer. Foreign particles or manufacturing defects can create localized areas where liquid crystal movement is restricted, resulting in persistent brightness variations that mimic image patterns displayed over time.
Characteristics and Risk Factors
Image retention in an LCD screen monitor exhibits distinct characteristics that differentiate it from burn-in in other display technologies:
- Typically less severe and more reversible than OLED or plasma burn-in
- Often manifests as a faint, uniform ghost image rather than sharp outlines
- More noticeable in uniform backgrounds, particularly gray or light colors
- Can vary with viewing angle, unlike permanent burn-in which remains consistent
- May temporarily disappear when the display warms up or cools down
Several factors increase the risk of image retention in an LCD screen monitor:
Usage Patterns
- Displaying static content for extended periods (8+ hours)
- High-contrast interfaces with persistent elements
- Operating at maximum brightness settings continuously
- Frequent display of fixed logos, menus, or UI elements
Environmental Factors
- Elevated operating temperatures above 35°C (95°F)
- Exposure to direct sunlight or strong ambient light
- Humidity extremes outside recommended ranges
- Mechanical stress or vibration during operation
Prevention Strategies
Preventing image retention in an LCD screen monitor is far more effective than attempting to reverse it. Implementing these proactive measures can significantly reduce risk:
Display Settings Optimization
- Maintain brightness levels at 70% or lower for general use
- Adjust contrast settings to avoid extreme values (typically 70-80% is optimal)
- Enable any built-in screen saver or pixel shift features
- Use power management settings to turn off the display during inactivity
- For professional applications, utilize "eco-mode" or similar energy-saving features
Usage Habits
- Periodically change displayed content, especially for LCD screen monitor models used in digital signage
- Implement regular screen refresh intervals, particularly in applications with static UI elements
- Avoid displaying fixed, high-contrast elements for more than 2-3 hours continuously
- Use full-screen content when possible to minimize static border areas
- For professional monitors, utilize built-in pixel refresh cycles during non-operational periods
Mitigation and Recovery Techniques
If image retention is observed in an LCD screen monitor, several techniques can help reduce or eliminate the artifact:
Immediate Remedial Actions
- Display a full-screen, high-brightness white image for 15-30 minutes
- Use a specialized pixel refresher tool designed for LCD technology
- Run a full-screen color cycle (red, green, blue, white, black) for several hours
- Power off the display completely for 24-48 hours to allow material recovery
Long-term Recovery Approaches
- Operate at reduced brightness for several days after the incident
- Use varied content with frequent full-screen transitions
- Implement a scheduled pixel refresh cycle through monitor settings
- Ensure proper ventilation to maintain optimal operating temperature
It's important to note that recovery success varies depending on the severity and duration of the image retention. Mild cases often resolve completely within a few days, while more severe instances may leave permanent, though typically faint, artifacts. Modern LCD screen monitor models incorporate advanced materials and driving techniques that significantly reduce image retention risks compared to older generations.
Industry Developments and Standards
Display manufacturers continue to innovate to minimize image retention in LCD screen monitor technology. Recent advancements include:
- Development of more stable liquid crystal materials with improved resistance to molecular fatigue
- Advanced pixel refreshing algorithms that subtly vary voltages during static image display
- Intelligent backlight control systems that detect static content and apply preventative measures
- Enhanced polarizer and filter materials with greater resistance to photo-degradation
- Built-in diagnostic tools that can detect early signs of image retention and initiate corrective actions
These innovations, combined with improved user education about proper LCD screen monitor care, have significantly reduced image retention issues in modern displays. For most users, following recommended usage guidelines and implementing basic preventative measures will ensure long-term display performance without noticeable image retention artifacts.
Image Retention Example
Demonstration of persistent ghost image artifacts resulting from extended static content display on an LCD monitor.
Image Retention Risk Factors
Critical Warning
High-risk scenarios for an LCD screen monitor include displaying static content at maximum brightness for 12+ hours continuously. This practice can increase image retention likelihood by up to 70% compared to normal usage patterns.
