LCD Display for Arduino

A character LCD for Arduino is designed primarily for displaying text and simple predefined symbols. These displays are organized in a grid of characters (e.g., 16 columns by 2 rows) where each character is made up of a 5x8 or 5x10 pixel matrix. Character LCDs are ideal for applications where you need to display numerical data, text messages, or simple status information.

In contrast, a graphic LCD for Arduino allows you to draw custom graphics, shapes, and text at any position on the screen. These displays are organized as a grid of individual pixels (e.g., 128x64 pixels) that can be individually controlled. Graphic LCDs are more versatile than character LCDs but typically require more processing power and memory to drive effectively.

Connecting an LCD display to Arduino using I2C is a popular method because it requires only two pins. Here's how to do it:

1. Identify the I2C pins on your Arduino (A4 for SDA and A5 for SCL on most Arduino boards)
2. Connect the SDA pin of the LCD to the SDA pin of the Arduino
3. Connect the SCL pin of the LCD to the SCL pin of the Arduino
4. Connect the VCC pin of the LCD to 5V (or 3.3V if the display supports it)
5. Connect the GND pin of the LCD to GND
6. Install the LiquidCrystal_I2C library in the Arduino IDE
7. Use an I2C scanner sketch to determine the address of your LCD
8. Initialize the display in your sketch using the correct address, columns, and rows

This method significantly reduces the number of pins required compared to the parallel interface, leaving more pins available for other components.

Yes, most character LCD displays for Arduino support custom characters. These displays typically have space in their memory for 8 custom characters (some models support up to 16). To create and display custom characters:

1. Design your character using an 8x5 pixel grid
2. Convert the design into an array of 8 bytes, where each byte represents a row of the character
3. Use the createChar() function to store the custom character in the LCD's memory
4. Display the custom character using the write() function with the appropriate index

For example, to create a smiley face character:

byte smiley[8] = {
  0b00000,
  0b01010,
  0b01010,
  0b00000,
  0b10001,
  0b10001,
  0b01110,
  0b00000
};

lcd.createChar(0, smiley);
lcd.write(0);

The maximum size of LCD display that can be used with Arduino depends on several factors, including the type of display, the interface used, and the processing power required:

• Character LCDs: Common sizes range from 8x2 to 40x4. Larger character LCDs are available but may require more power and may be slower to update.
• Graphic LCDs: Common sizes range from 128x32 to 192x64 pixels. Larger graphic LCDs are available but may require more memory and processing power.

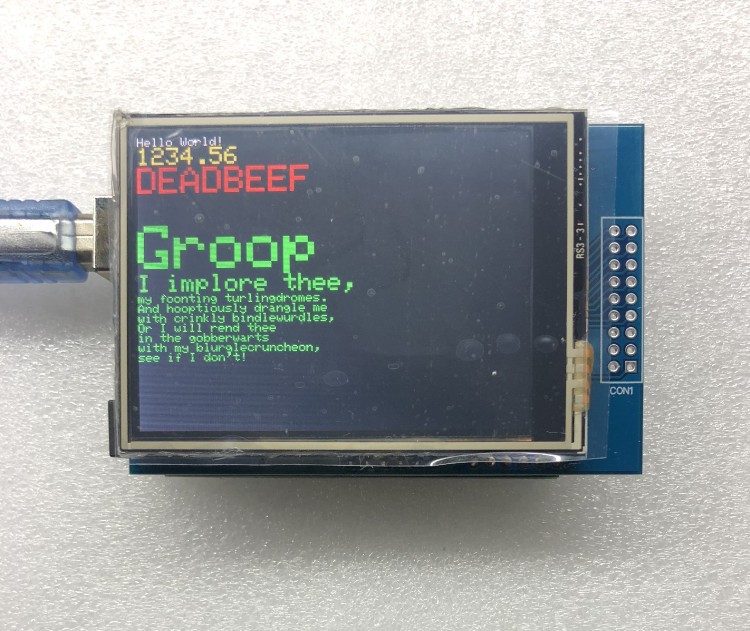

• TFT LCDs: Common sizes range from 1.8" (128x160 pixels) to 3.5" (480x320 pixels). Some Arduino boards can drive larger TFT displays, but performance may be limited.

When using larger displays, especially TFTs, it's important to consider the memory requirements. For example, a 320x240 pixel TFT display with 16-bit color requires 153,600 bytes of memory just for the display buffer, which is more than the total SRAM available on many Arduino boards. In such cases, you may need to use an Arduino with more memory (like the Arduino Due) or use a display controller that handles the buffer memory internally.

To improve the performance of your LCD display for Arduino, consider the following optimizations:

• Choose the right interface: SPI is generally faster than I2C, making it better for high-resolution displays or applications requiring frequent updates.
• Minimize updates: Only update the parts of the display that change, rather than refreshing the entire screen.
• Use hardware acceleration: Some display libraries support hardware acceleration features of certain display controllers.
• Optimize data transfer: Use efficient data structures and minimize the number of function calls when updating the display.
• Reduce backlight brightness: Lowering the backlight brightness can reduce power consumption and heat generation.
• Use appropriate libraries: Choose well-optimized libraries specifically designed for your display type.
• Consider using a display with built-in RAM: Some displays have their own frame buffer, reducing the load on the Arduino.

For example, when using a TFT LCD display for Arduino, using a library that supports partial screen updates can significantly improve performance by only redrawing the areas that have changed.
