LCD Display Definition
A comprehensive technical guide to Liquid Crystal Display technology, its principles, applications, and advancements.
Understanding LCD Display Definition
The LCD display definition refers to a Liquid Crystal Display, which is a flat-panel display technology that uses the light-modulating properties of liquid crystals. Unlike emissive displays such as CRT or OLED, an LCD display does not emit light directly but instead uses a backlight or reflector to produce images by selectively blocking light.
The basic LCD display definition encompasses a technology that sandwiches liquid crystal between two polarizing filters. When an electric current is applied, the liquid crystals align to either block or allow light to pass through, creating the visual images we see on screens ranging from smartphones to large-format televisions.
Historical Context
The foundation for LCD technology was laid in 1888 when Austrian botanist Friedrich Reinitzer discovered liquid crystals. However, it wasn't until 1968 that the first functional LCD display was developed by RCA scientists. Since then, the LCD display definition has evolved significantly, with advancements in materials and manufacturing processes leading to the high-resolution, energy-efficient screens we use today.
Understanding the LCD display definition requires recognizing its key components: two glass substrates, a liquid crystal layer, polarizing filters, a backlight system, and thin-film transistors (TFTs) for active matrix displays. Each component plays a crucial role in the functionality of an LCD display, contributing to its performance characteristics such as brightness, contrast, and response time.
The versatility of LCD technology has led to its widespread adoption across various industries. From consumer electronics like televisions, laptops, and smartphones to industrial applications in medical equipment, automotive displays, and digital signage, the LCD display definition encompasses a broad range of products that have become integral to modern life.
Key Advantages of LCD Displays
Energy Efficiency
LCD displays consume less power compared to CRT monitors, making them ideal for portable devices.
Compact Design
The thin profile of LCD displays allows for sleeker, more portable devices.
Color Accuracy
Modern LCD displays offer excellent color reproduction, crucial for professional applications.
How LCD Displays Work
To fully grasp the LCD display definition, it's essential to understand its working principle. An LCD display operates on the unique properties of liquid crystals, which exhibit characteristics of both liquids and solids. These crystals can change their molecular arrangement when an electric field is applied, altering their optical properties.
Basic Operational Components
- Backlight System: Provides the primary light source for the display.
- Polarizing Filters: Two filters that polarize light in perpendicular directions.
- Liquid Crystal Layer: Controls the passage of light through the display.
- Thin-Film Transistors (TFTs): Act as switches to control individual pixels.
- Color Filters: Create color images by filtering light into red, green, and blue components.

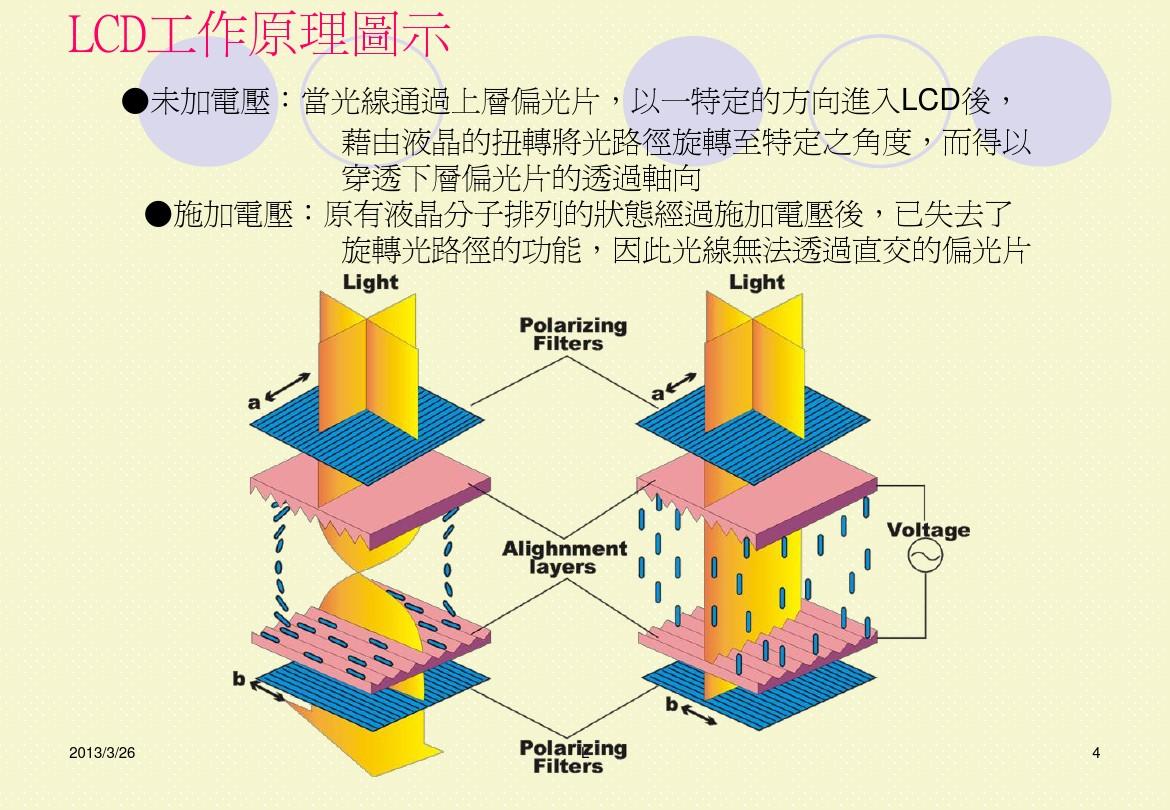

The operation of an LCD display begins with the backlight, which emits white light. This light first passes through a polarizing filter, which aligns the light waves in a specific direction. The polarized light then enters the liquid crystal layer, where its path can be manipulated by applying an electric current.
When no voltage is applied, the liquid crystals twist the light waves by 90 degrees, allowing them to pass through the second polarizing filter (which is oriented perpendicular to the first). However, when a voltage is applied to specific pixels via the TFTs, the liquid crystals align themselves parallel to the electric field, losing their ability to twist the light. This causes the light to be blocked by the second polarizing filter, creating dark areas on the screen.
Color Generation in LCD Displays

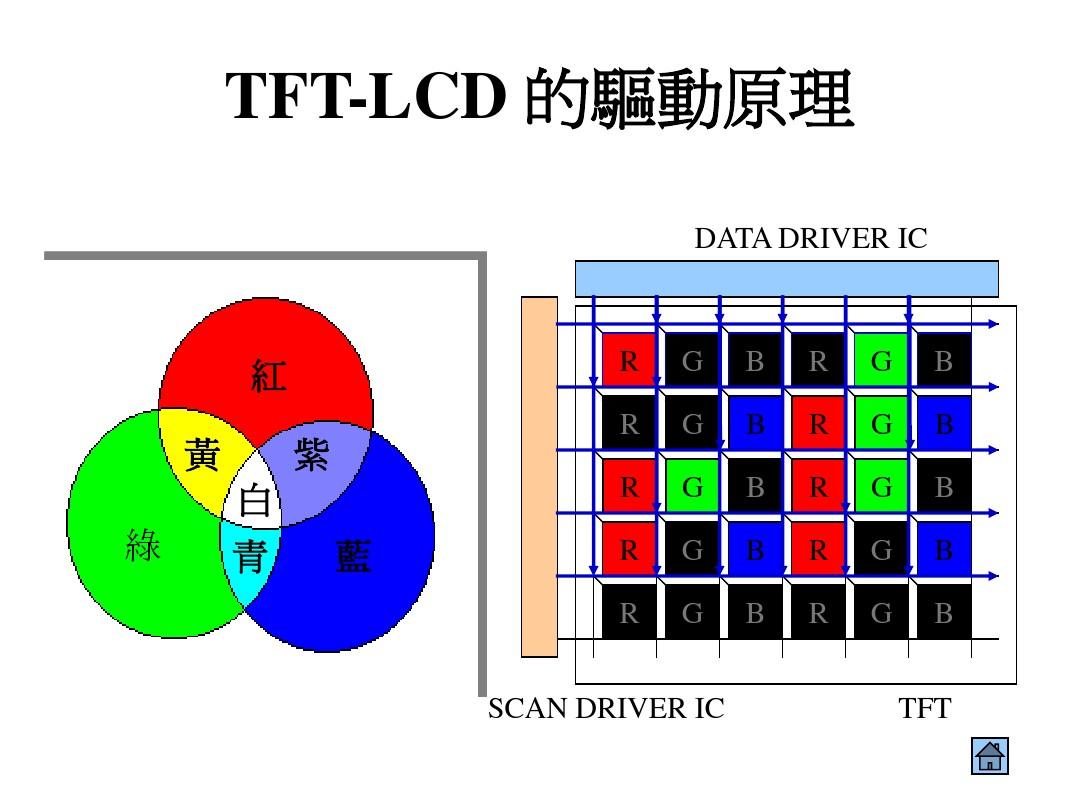

For color LCD displays, each pixel is composed of three sub-pixels corresponding to the primary colors: red, green, and blue. These sub-pixels are covered by corresponding color filters. By varying the voltage applied to each sub-pixel, the intensity of light passing through each color filter can be controlled, allowing the creation of a wide range of colors.
The precise control of each pixel's transparency is what gives an LCD display its ability to produce sharp images with varying levels of brightness and color. This control mechanism is fundamental to the LCD display definition and distinguishes it from other display technologies.
权威文献引用
"A liquid-crystal display (LCD) is a flat-panel display or other electronically-modulated optical device that uses the light-modulating properties of liquid crystals. Liquid Crystal Displays are already widely used in consumer electronics, but research and development is still ongoing. The shifting focus of research follows a pattern of improved definition, increased display size, wider viewing angles and faster responses, with improvements in each area influencing the next."
Source: Ishihara, S., Kobayashi, S., & Ukai, Y. (2019). High Quality Liquid Crystal Displays and Smart Devices - Volume 1: Development, display applications and components. IET Digital Library. https://digital-library.theiet.org/content/books/cs/pbcs068f
Types of LCD Displays
The LCD display definition encompasses several different types, each with unique characteristics and applications. These variations are primarily distinguished by the arrangement of liquid crystals and the driving method used to control them.
| Type | Description | Advantages | Disadvantages | Applications |
|---|---|---|---|---|
| TN-LCD | Twisted Nematic LCD - liquid crystals twist when no voltage is applied | Low cost, fast response time | Narrow viewing angles, poor color reproduction | Entry-level monitors, calculators, simple displays |
| STN-LCD | Super Twisted Nematic LCD - greater twist angle than TN | Better contrast than TN, low power consumption | Slow response time, limited color capability | Early mobile phones, digital watches, instrumentation |
| IPS-LCD | In-Plane Switching LCD - liquid crystals rotate in plane | Wide viewing angles, excellent color reproduction | Higher cost, slightly slower response time | Professional monitors, high-end smartphones, tablets |
| VA-LCD | Vertical Alignment LCD - liquid crystals align vertically when no voltage is applied | High contrast ratio, good color reproduction | Slower response time than TN, higher cost | High-end TVs, curved displays, gaming monitors |
| TFT-LCD | Thin Film Film Transistor LCD - active matrix technology | High resolution, fast response time, excellent image quality | Complex manufacturing, higher cost | High-end displays, laptops, smartphones, TVs |
Each type of LCD display offers distinct advantages and disadvantages, making them suitable for different applications. Understanding these variations is crucial for fully appreciating the breadth of the LCD display definition and its practical applications.
Evolution of LCD Technology
The evolution of LCD technology has been marked by significant advancements in performance and manufacturing processes. From the early TN-LCD displays with limited viewing angles and color capabilities to the modern high IPS-lcd and va-lcd technologies that offer superior image quality, the lcd display definition has expanded to encompass a wide range of sophisticated display solutions.
1970s - TN-LCD
Introduction of Twisted Nematic technology, enabling the first practical LCD displays.
1980s - STN-LCD
Super Twisted Nematic displays improve contrast and enable rudimentary color displays.
1990s - TFT-LCD
Thin Film Transistor technology revolutionizes LCD displays with active matrix control.
2000s - IPS-LCD
In-Plane Switching technology delivers wide viewing angles and improved color reproduction.
2010s - Advanced VA-LCD
Vertical Alignment displays offer high contrast ratios approaching OLED technology.
LCD Display Technical Specifications
Understanding the technical specifications is essential for fully grasping the LCD display definition and evaluating different display options. These parameters determine the performance, quality, and suitability of an LCD display for specific applications.
Key Performance Metrics
-
Resolution
The number of pixels on the screen, typically expressed as width × height (e.g., 1920 × 1080 for Full HD). Higher resolution means sharper images.
-
Brightness
Measured in candelas per square meter (cd/m²), indicating the intensity of light emitted by the display. Typical values range from 200-1000 cd/m².
-
Contrast Ratio
The ratio of the brightest white to the darkest black that the display can produce. Higher ratios provide more vivid images.
-
Response Time
The time it takes for a pixel to change from one color to another, measured in milliseconds (ms). Faster response times reduce motion blur.
-
Refresh Rate
The number of times the display updates per second, measured in Hertz (Hz). Higher refresh rates result in smoother motion.
Color Performance
-
Color Gamut
The range of colors that the display can reproduce, often expressed as a percentage of a standard color space (e.g., sRGB, DCI-P3).
-
Color Depth
The number of bits used to represent colors, typically 8-bit (16.7 million colors) or 10-bit (1.07 billion colors).
-
Color Accuracy
How closely the displayed colors match the original colors, measured as Delta E (ΔE). Lower values indicate higher accuracy.
-
Viewing Angles
The maximum angles from which the display can be viewed without significant color or brightness distortion.
-
Backlight Technology
The type of backlight used (CCFL or LED), which affects brightness, power consumption, and color performance.
Typical LCD Display Specifications
| Parameter | Entry-Level Monitor | Mid-Range Monitor | Professional Monitor | High-End TV |
|---|---|---|---|---|
| Resolution | 1920 × 1080 (Full HD) | 2560 × 1440 (QHD) | 3840 × 2160 (4K UHD) | 3840 × 2160 (4K UHD) / 7680 × 4320 (8K UHD) |
| Brightness | 250-300 cd/m² | 300-400 cd/m² | 400-600 cd/m² | 500-1000 cd/m² |
| Contrast Ratio | 1000:1 | 1000:1 - 3000:1 | 1000:1 - 5000:1 | 3000:1 - 10000:1 (with local dimming) |
| Response Time | 5-8 ms | 2-5 ms | 4-6 ms | 8-12 ms |
| Refresh Rate | 60 Hz | 75-144 Hz | 60-120 Hz | 60-120 Hz |
| Color Gamut | 70-90% sRGB | 95-100% sRGB | 99% sRGB, 95%+ DCI-P3 | 90%+ DCI-P3 |
| Color Depth | 8-bit | 8-bit + FRC | 10-bit | 10-bit |
| Viewing Angles | 170°/160° | 178°/178° | 178°/178° | 178°/178° |
These specifications play a crucial role in defining the capabilities and limitations of an LCD display. When evaluating different LCD displays, it's important to consider how these parameters align with the intended use case, whether it's for general computing, gaming, professional design work, or home entertainment.
Industry Standards and Certifications
Various industry standards and certifications help ensure the quality and performance of LCD displays. These include:
- ISO 13406-2: Defines performance requirements for flat panel displays
- VESA DisplayHDR: Standard for high dynamic range displays
- Pantone Validated: Certification for color accuracy
- TÜV Rheinland: Certifications for eye comfort and safety
- Energy Star: Certification for energy efficiency
LCD Display Comparison
To fully appreciate the LCD display definition, it's helpful to compare LCD technology with other display technologies, particularly OLED (Organic Light-Emitting Diode) and LED (Light-Emitting Diode) displays. Each technology has its unique characteristics, advantages, and limitations.
LCD vs OLED vs LED
| Parameter | LCD | OLED | LED |
|---|---|---|---|
| Technology | Liquid crystals modulate backlight | Organic compounds emit light when electrified | Light-emitting diodes as pixels |
| Backlight | Required (CCFL or LED) | Not required (self-emitting) | Not required (self-emitting) |
| Contrast Ratio | Good (1000:1 to 10,000:1 with local dimming) | Excellent (infinite contrast) | Excellent (infinite contrast) |
| Black Level | Good (better with local dimming) | Excellent (true black) | Excellent (true black) |
| Viewing Angles | Good (178° with IPS technology) | Excellent (180°) | Excellent (180°) |
| Response Time | Good (2-12 ms) | Excellent (0.1 ms) | Excellent (0.1 ms) |
| Color Reproduction | Good to Excellent | Excellent | Excellent |
| Brightness | High (up to 1000 cd/m²) | Medium to High (up to 800 cd/m²) | Very High (up to 2000 cd/m²) |
| Power Consumption | Medium (varies with content) | Low (for dark content) to Medium (for bright content) | High |
| Lifespan | Long (50,000-100,000 hours) | Medium (30,000-50,000 hours) | Long (100,000+ hours) |
| Burn-in Risk | Low | Moderate to High | Low |
| Cost | Low to Medium | Medium to High | High to Very High |
This comparison highlights the relative strengths and weaknesses of LCD displays compared to other technologies. While OLED and LED displays offer advantages in certain areas like contrast ratio and response time, LCD displays continue to be popular due to their balance of performance, cost, and reliability.
Performance Comparison Chart
The chart above visualizes the relative performance of LCD, OLED, and LED displays across key metrics. While OLED excels in contrast and response time, LCD maintains strong performance in brightness and cost-effectiveness. Understanding these differences helps in selecting the appropriate display technology for specific applications.
Common LCD Display Problems and Solutions
Despite the advancements in LCD technology, users may still encounter various issues with their LCD displays. Understanding these common problems and their solutions is an important aspect of the LCD display definition and practical LCD usage.
Display Issues
Dead Pixels
Small dots that remain permanently black or a specific color.
Solution: For stuck pixels (colored but not dead), try pixel-repair software or gently massaging the affected area. Dead pixels usually require screen replacement.
Backlight Issues
Dim display, uneven brightness, or complete lack of backlight.
Solution: Check and adjust brightness settings. If the issue persists, the backlight inverter or LED strips may need replacement, which typically requires professional repair.
Flickering Display
Screen flashes or flickers intermittently or constantly.
Solution: Check refresh rate settings and adjust to a higher rate. Update graphics drivers. If the issue continues, it may indicate a failing backlight or inverter.
Image Quality Issues
Color Distortion
Inaccurate colors, color banding, or washed-out appearance.
Solution: Calibrate the display using built-in tools or professional calibration software. Check for loose cables or damaged connectors. If the issue persists, it may indicate a failing LCD panel.
Image Persistence/Burn-in
Faint ghost image remains on screen after changing content.
Solution: Run a screen saver or display a white screen for several hours. Avoid displaying static images for extended periods. For severe cases, professional repair or replacement may be necessary.
Image Distortion
Stretched, skewed, or otherwise distorted images.
Solution: Adjust display resolution to match the native resolution of the LCD. Check aspect ratio settings. Update graphics drivers. If the issue continues, it may indicate a problem with the graphics card or LCD controller.
Preventive Maintenance Tips
Proper Cleaning
Use a soft, lint-free cloth and specialized screen cleaner to avoid scratching the display surface.
Optimal Usage Conditions
Operate the display within recommended temperature and humidity ranges to prevent component damage.
Power Management
Use screen savers and power-saving features to reduce wear on the display and extend its lifespan.
By understanding these common issues and their solutions, users can better maintain their LCD displays and troubleshoot problems as they arise. Regular maintenance and proper usage can significantly extend the lifespan of an LCD display and ensure optimal performance.
Frequently Asked Questions (FAQ)
What is the difference between LCD and LED displays?
While the term "LED display" is often used to describe modern LCD displays with LED backlighting, true LED displays are a different technology where each pixel is an LED. In contrast, an LCD display uses liquid crystals to modulate light from a separate backlight (which can be LED or CCFL). The key difference is that LED displays are self-emissive, while LCD displays require a backlight.
How long do LCD displays typically last?
The lifespan of an LCD display is typically measured in hours of use. Most LCD displays have a rated lifespan of 50,000 to 100,000 hours, which translates to approximately 5.7 to 11.4 years of continuous use. However, actual lifespan can vary based on usage patterns, operating conditions, and the quality of the display.
Can dead pixels be repaired?
Dead pixels (permanently black pixels) are typically not repairable and usually require screen replacement. However, stuck pixels (pixels that remain a specific color) can sometimes be fixed using pixel-repair software or by gently massaging the affected area. Prevention is key, so it's important to check for dead pixels when purchasing a new LCD display.
What is the best resolution for an LCD display?
The best resolution depends on the size of the display and its intended use. For a 24-inch monitor, 1920 × 1080 (Full HD) is typically sufficient for general use. For larger displays or professional applications like graphic design, higher resolutions such as 2560 × 1440 (QHD) or 3840 × 2160 (4K UHD) are preferred. The "best" resolution is often the native resolution of the display, which provides the sharpest image quality.
How do I clean my LCD display safely?
To clean an LCD display safely, use a soft, lint-free cloth (microfiber cloths work well) and a specialized screen cleaner or a solution of mild soap and water. Avoid using ammonia-based cleaners, alcohol, or other harsh chemicals, as these can damage the anti-glare coating. Never spray liquid directly on the screen; instead, apply it to the cloth first. Gently wipe the screen in a circular motion, avoiding excessive pressure.
What is the difference between TN, IPS, and VA LCD panels?
TN (Twisted Nematic) panels are the most common and affordable, offering fast response times but limited viewing angles and color reproduction. IPS (In-Plane Switching) panels provide wider viewing angles and better color accuracy, making them ideal for professional applications. VA (Vertical Alignment) panels offer high contrast ratios and good color reproduction, making them suitable for both professional and entertainment use.
Is LCD technology becoming obsolete?
While OLED technology has gained popularity in recent years, especially in high-end smartphones and televisions, LCD technology remains widely used and continues to evolve. LCD displays offer a good balance of performance, cost, and reliability, making them suitable for many applications. Additionally, advancements like Mini LED backlighting are improving the performance of LCD displays, helping them remain competitive with OLED technology.
Glossary of Technical Terms
Display Technology Terms
Active Matrix
A display technology where each pixel is controlled by its own transistor, allowing for faster response times and higher resolution.
Backlight
The light source behind an LCD display that provides illumination for the liquid crystal layer.
CCFL (Cold Cathode Fluorescent Lamp)
A type of backlight used in older LCD displays, replaced in most modern displays by LED backlighting.
Color Depth
The number of bits used to represent colors, determining the total number of colors a display can produce.
Color Gamut
The range of colors that a display can reproduce, typically measured as a percentage of a standard color space.
Contrast Ratio
The ratio of the brightness of the brightest white to the darkest black that a display can produce.
LCD-Specific Terms
IPS (In-Plane Switching)
An LCD technology where liquid crystals rotate in the same plane as the display, providing wide viewing angles and accurate color reproduction.
Liquid Crystal
A substance that exhibits properties of both liquids and solids, changing its optical properties when an electric field is applied.
Native Resolution
The physical resolution of an LCD display, representing the actual number of pixels on the screen.
Passive Matrix
A display technology where pixels are controlled by a grid of conductive lines, used in older LCD displays with slower response times.
Pixel
The smallest unit of an image on a display, typically composed of three sub-pixels (red, green, blue) in color displays.
TFT (Thin Film Transistor)
A type of transistor used in active matrix LCD displays to control individual pixels, enabling faster response times and higher image quality.
